Spare UV-A lamps for Insect-O-Cutor® and MO-EL® light traps: photo, model, short description, technical data and compatibility.
MO-EL®

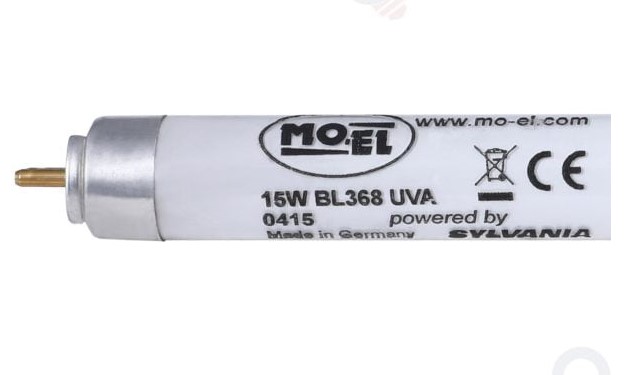

MO-EL® UV-A Lamp 0415
Details
Description
Compact tubular MO-EL® UV-A lamp for low and medium-output traps.
Technical data
Size
15 W / 300 x 16 mm
Emission
UV-A 365 nm
Base
G5
Fits models
CRI CRI 309, MO-FLY 701

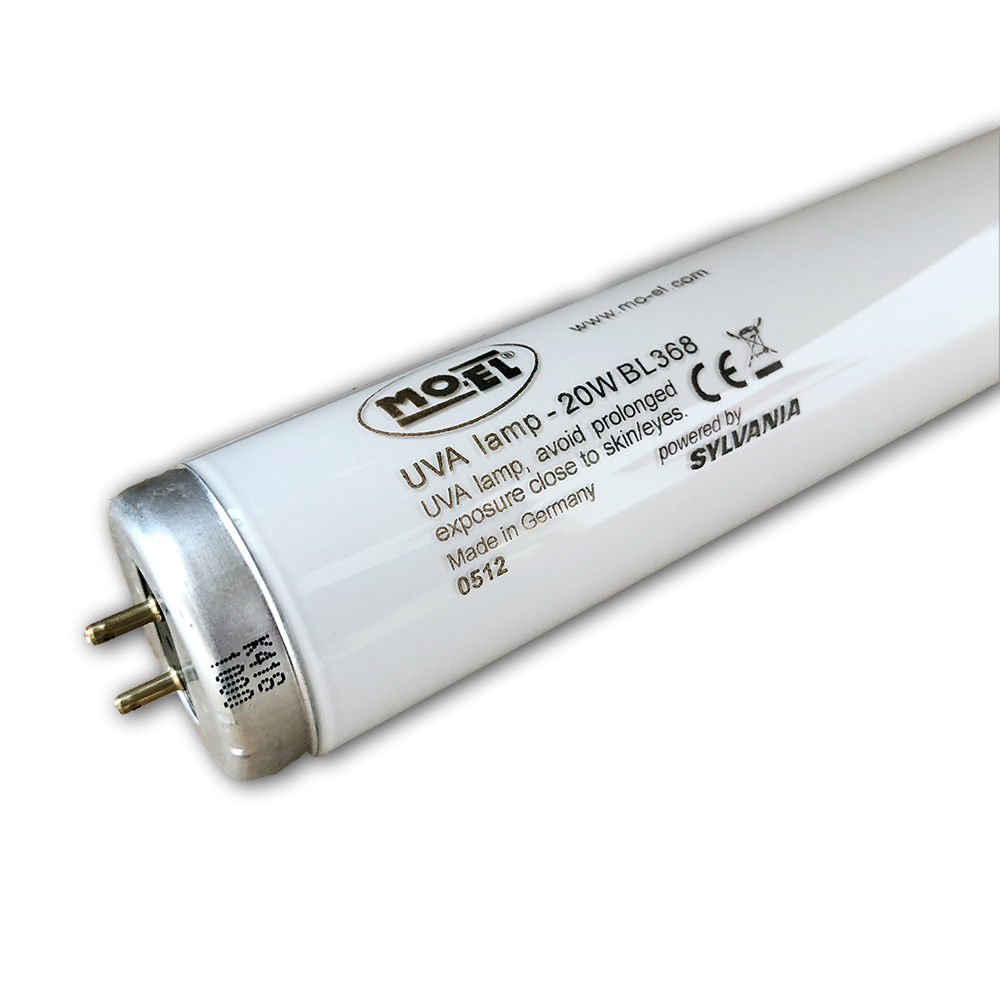

MO-EL® UV-A Lamp 0512
Details
Description
MO-EL® 20 W UV-A lamp for CRI CRI models using a straight G13 tube.
Technical data
Size
20 W / 590 x 38 mm
Emission
UV-A 365 nm
Base
G13
Fits models
CRI CRI 307

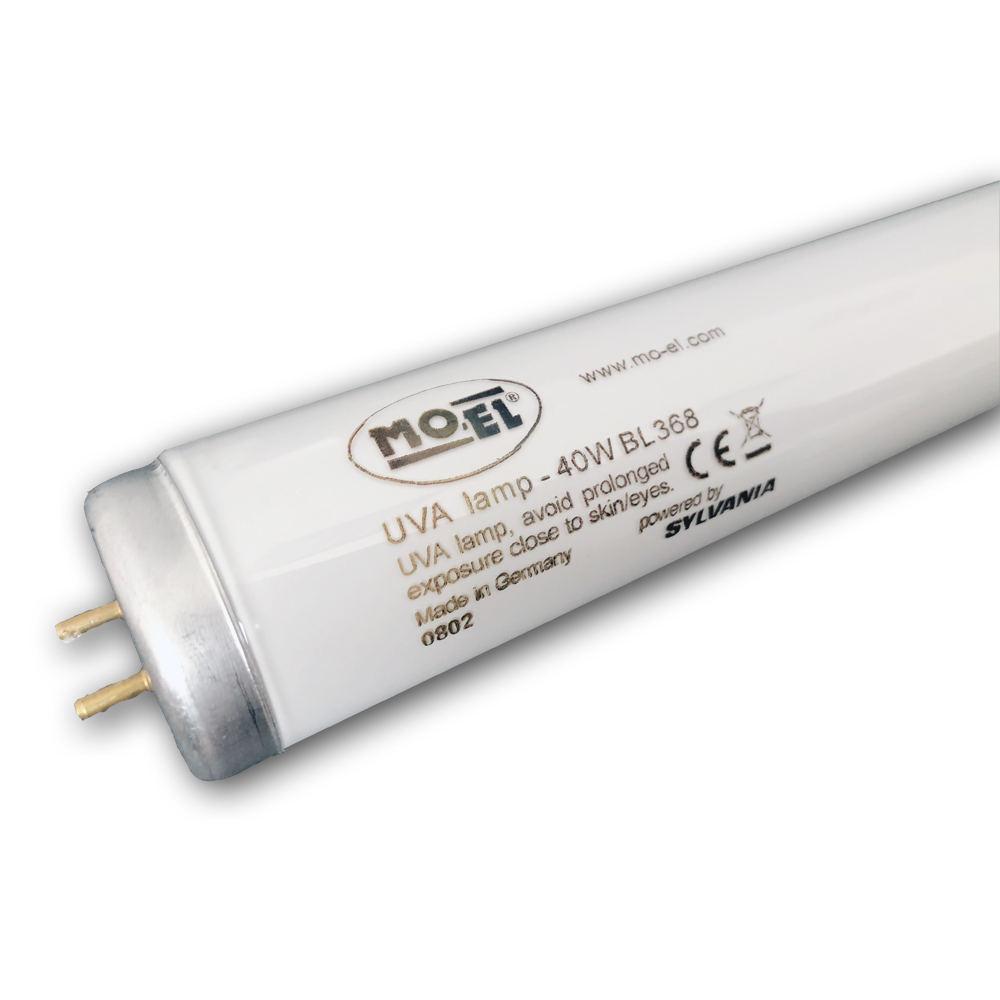

MO-EL® UV-A Lamp 0802
Details
Description
Higher-output MO-EL® 40 W UV-A lamp for industrial and outdoor CRI CRI models.
Technical data
Size
40 W / 590 x 38 mm
Emission
UV-A 365 nm
Base
G13
Fits models
CRI CRI 308
MO-EL® MOE000788
Details
Description
Protected MO-EL® UV-A lamp for the MO-STICK 372 glueboard trap.
Technical data
Size
40 W / shatterproof
Emission
UV-A 365 nm
Base
G13
Fits models
MO-STICK 372
Insect-O-Cutor®

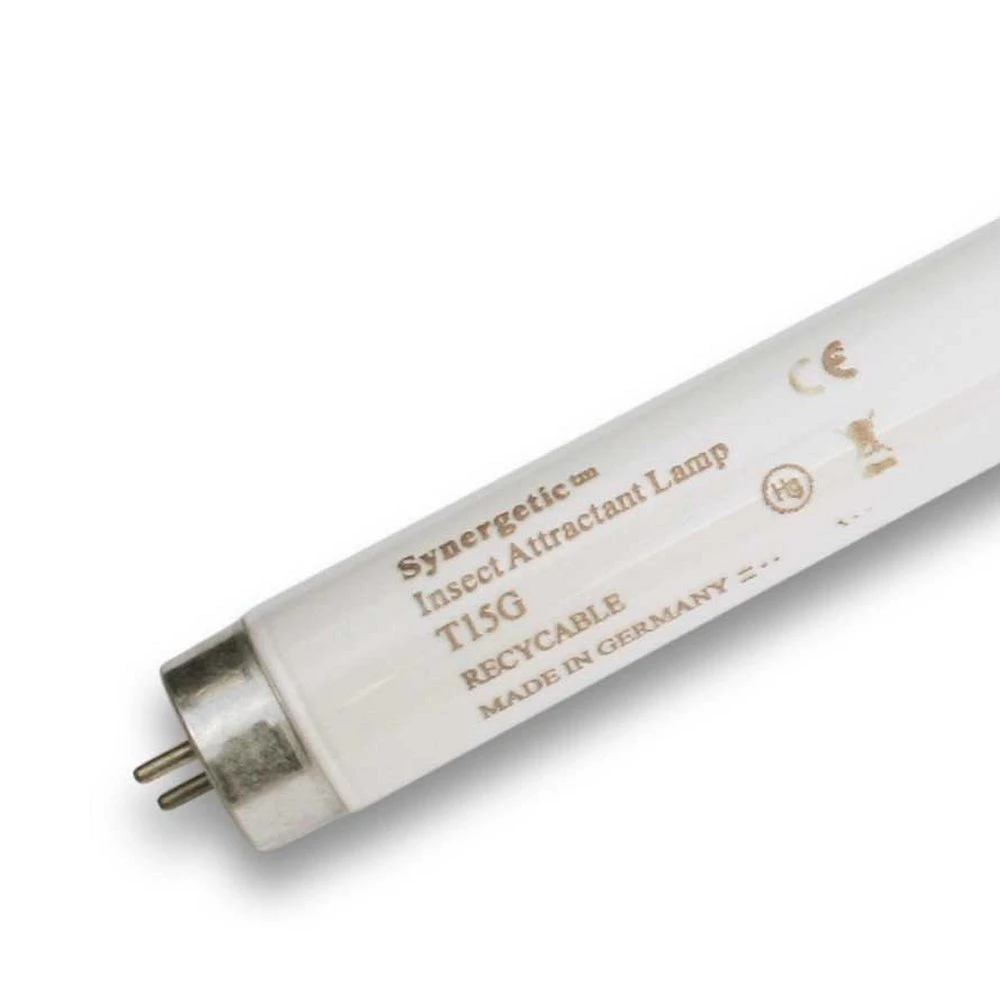

Synergetic TGX15-18
Details
Description
Synergetic UV-A lamp with green emission for Insect-O-Cutor® traps. The 368 and 540 nm dual wavelengths help attract a broader range of flying insects.
Technical data
Size
15 W / 18" / 435-450 mm
Emission
368 + 540 nm
Base
G13
Fits models
Allure, Edge 30W

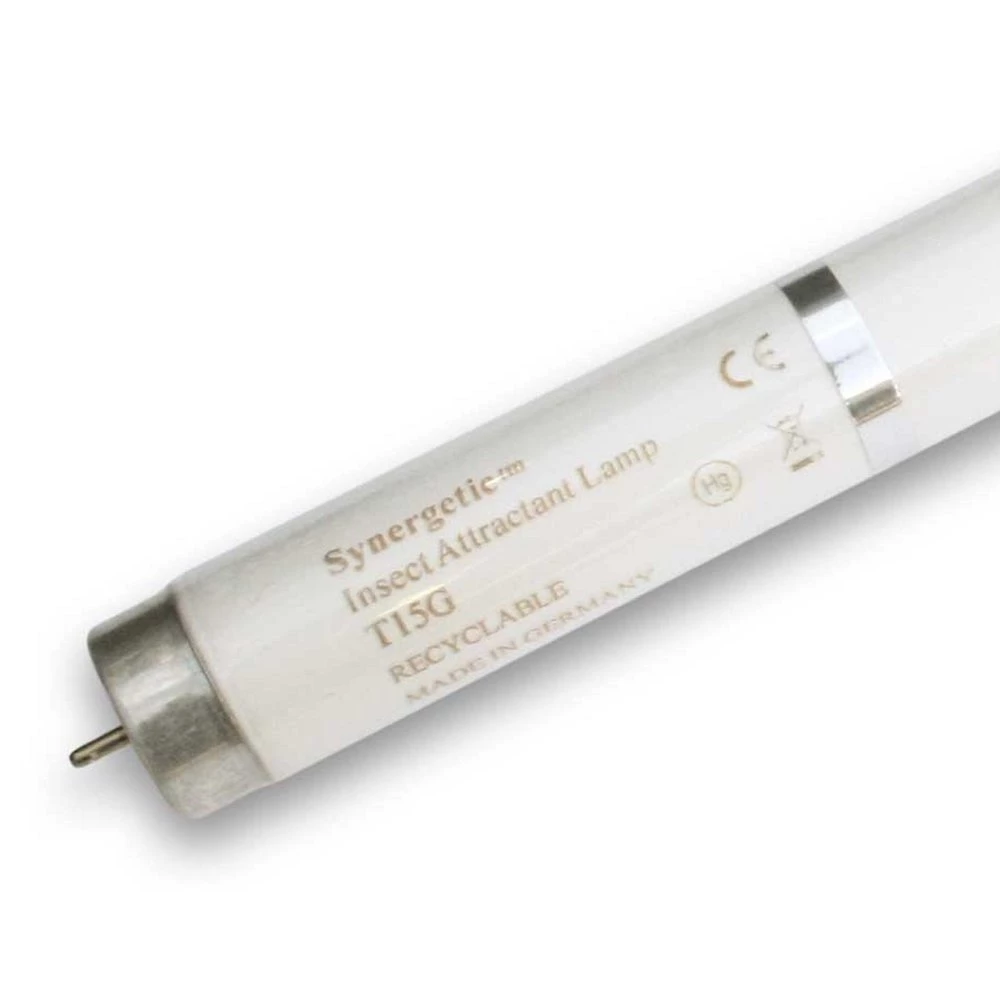

Synergetic TGX15-18S
Details
Description
Shatter-resistant Synergetic version with protective coating. Green emission and 368/540 nm dual wavelengths suit sites with stricter hygiene requirements.
Technical data
Size
15 W / 18" / 435-450 mm
Emission
368 + 540 nm
Base
G13
Fits models
Allure, Edge 30W

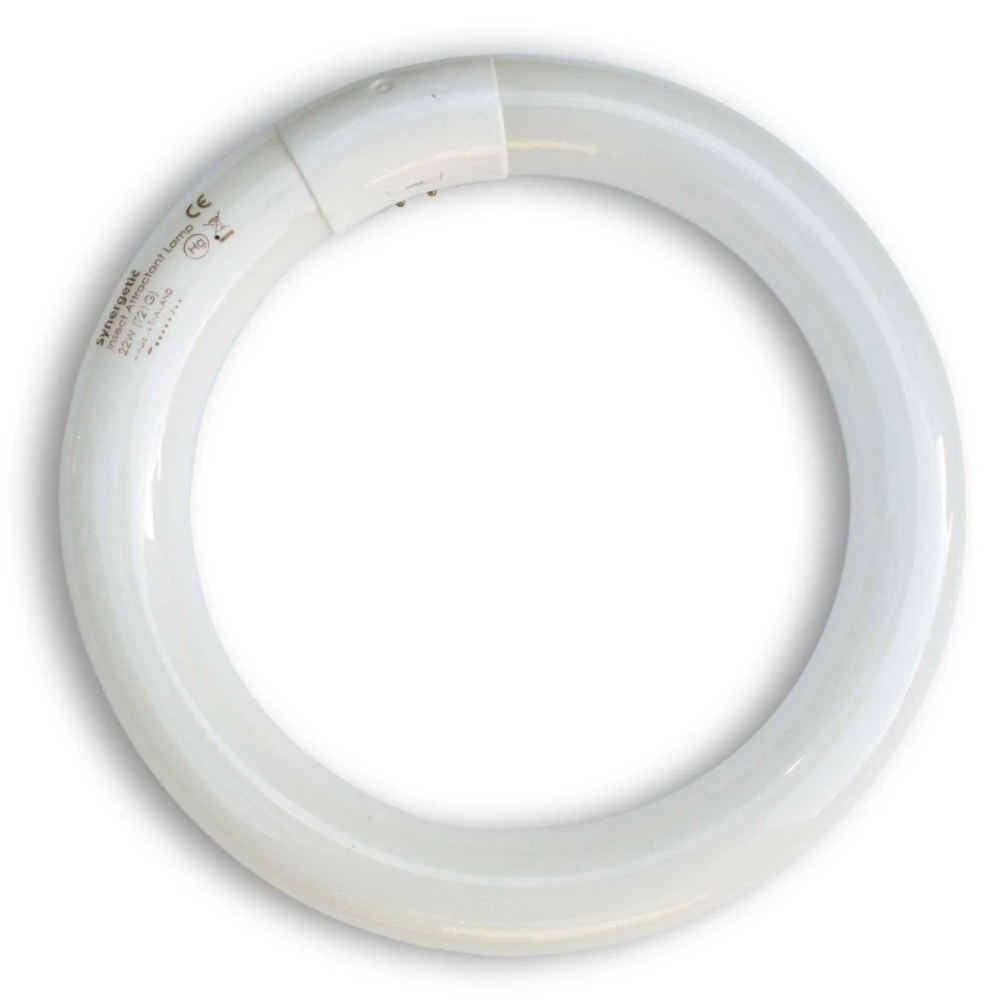

Synergetic TGX22
Details
Description
Circular Synergetic lamp for compact wall-mounted traps. Dual 368/540 nm emission improves attraction across different insect species.
Technical data
Size
22 W / circular / 210 mm
Emission
368 + 540 nm
Base
G10q
Fits models
Aura 22W, Select SE44, Select SE45

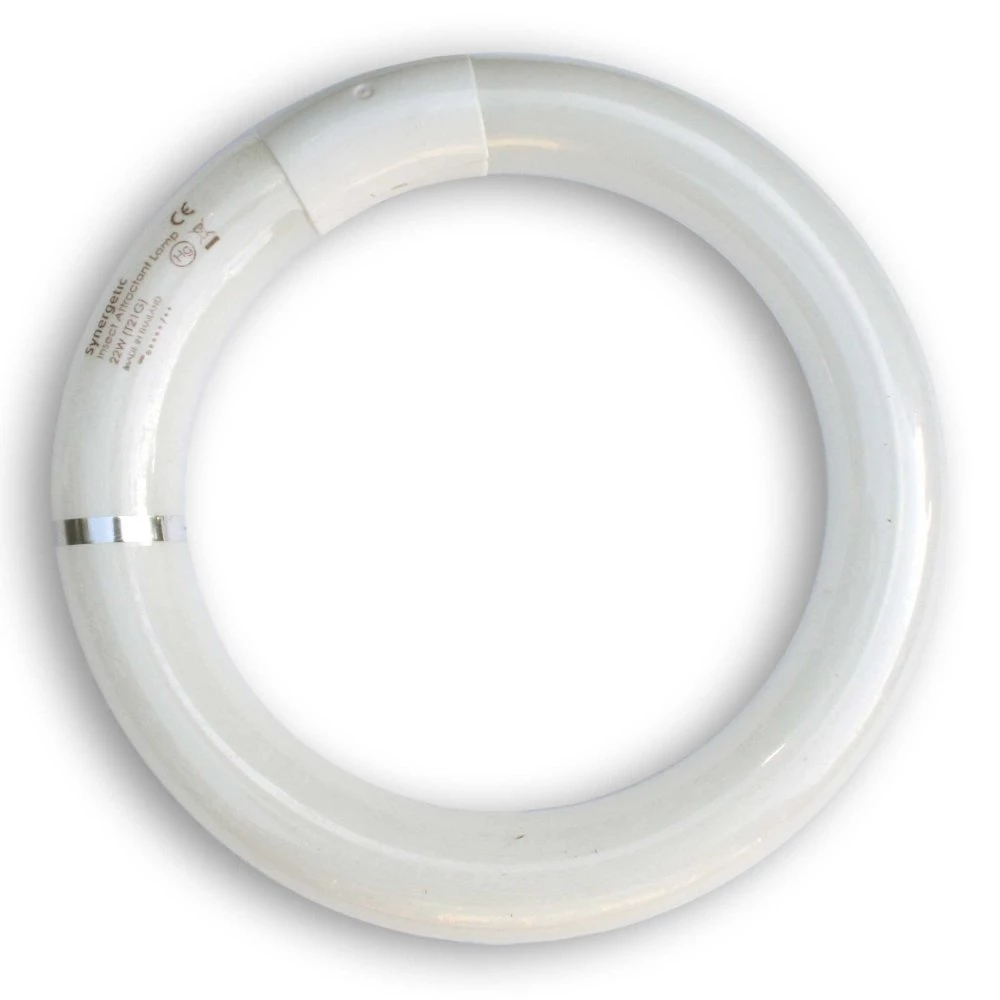

Synergetic TGX22S
Details
Description
Circular Synergetic lamp with protective coating. Suitable where reducing the risk of fragments from a damaged lamp is important.
Technical data
Size
22 W / circular / 210 mm
Emission
368 + 540 nm
Base
G10q
Fits models
Aura 22W, Select SE44, Select SE45
Philips TPX15-18
Details
Description
Straight Philips UV-A lamp for Insect-O-Cutor® glueboard light traps. Standard replacement for models using 15 W tubes.
Technical data
Size
15 W / 18" / 435-450 mm
Emission
UV-A 368 nm
Base
G13
Fits models
Halo 30, Exocutor 30W (EX30W / EX30S)

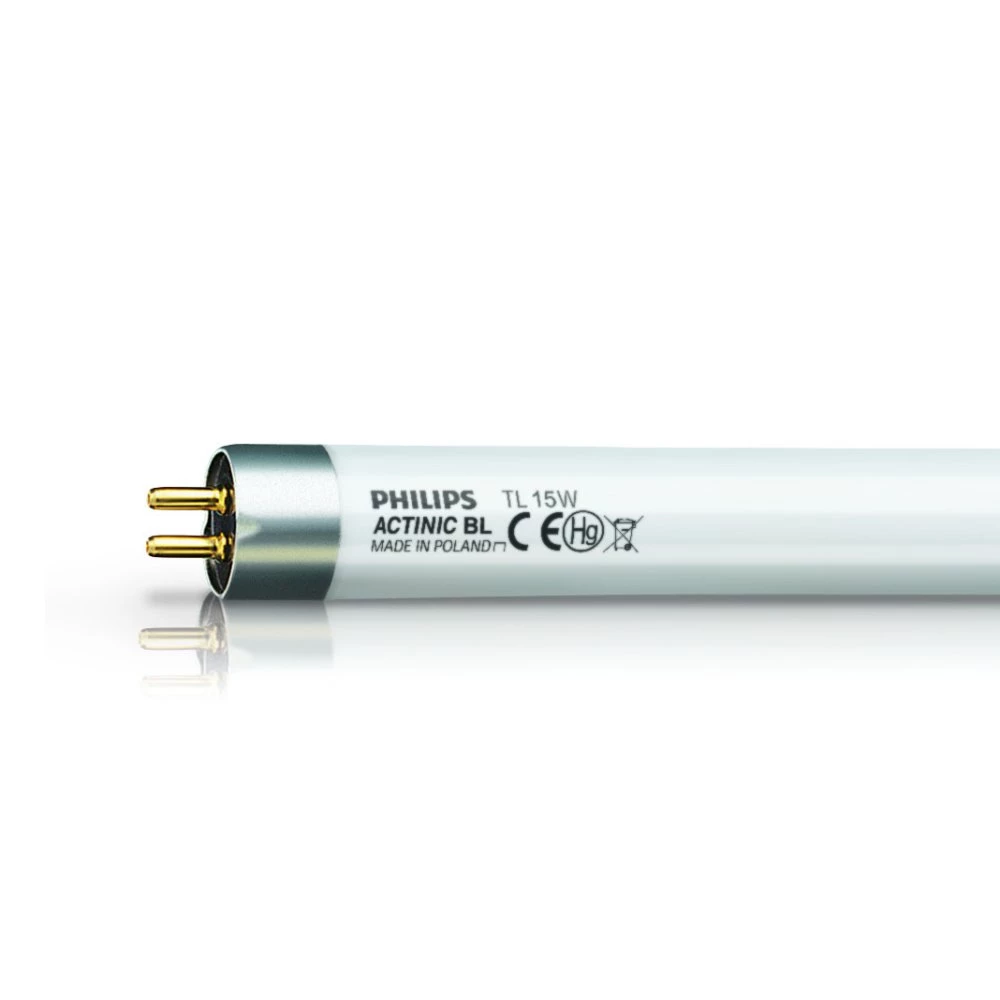

Philips TPX15-18S
Details
Description
Philips 15 W version with protective coating. Used where a lower-fragment-risk lamp is required.
Technical data
Size
15 W / 18" / 435-450 mm
Emission
UV-A 368 nm
Base
G13
Fits models
Halo 30, Exocutor 30W (EX30W / EX30S)
Philips TPX36-24
Details
Description
High-output Philips 36 W UV-A lamp for larger professional Insect-O-Cutor® traps.
Technical data
Size
36 W / 24" / 590-604 mm
Emission
UV-A 368 nm
Base
G13
Fits models
Splashproof SP80

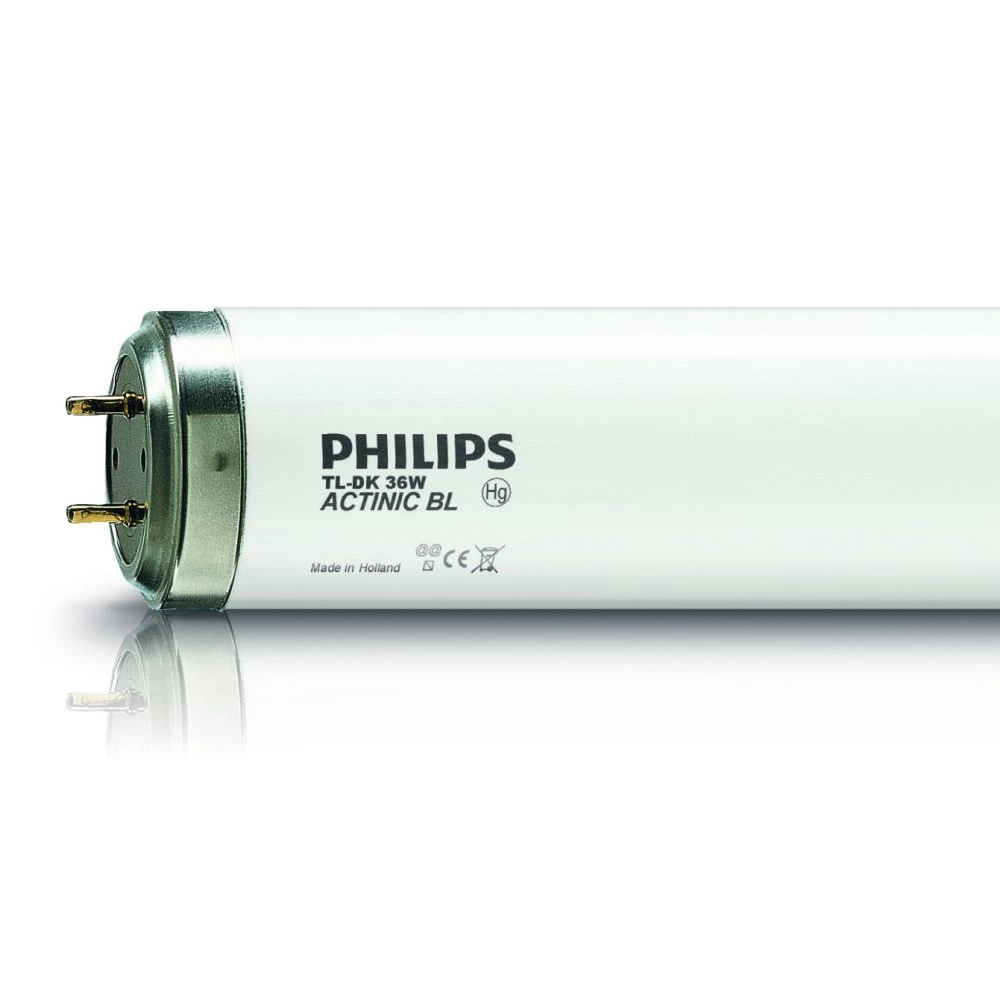

Philips TPX36-24S
Details
Description
Protected Philips 36 W lamp for high-output traps requiring a shatter-resistant UV-A tube.
Technical data
Size
36 W / 24" / 590-604 mm
Emission
UV-A 368 nm
Base
G13
Fits models
Splashproof SP80
WELL / Philips
Photo later
WELL / Philips FL15W T8 UVA
Details
Description
UV-A lamp for WELL WE-150-2 and WE-150-2(S). Photo will be added later. Not available yet.
Technical data
Size
15 W / T8
Light output
UVA 350-400 nm
Cap
G13 (T8)
Status
not available yet
Fits models
WELL WE-150-2, WE-150-2(S)
Photo later
WELL / Philips 36W T8 UVA
Details
Description
UV-A lamp for WELL WE-240 and WE-240(S). Photo will be added later. Not available yet.
Technical data
Size
36 W / T8
Light output
UVA 350-400 nm
Cap
G13 (T8)
Status
not available yet
Fits models
WELL WE-240, WE-240(S)
How to choose a lamp
Use the trap model and the marking on the old lamp. Versions marked S have a protective coating for sites with stricter hygiene requirements.
Need advice? We will help choose the correct lamp for your trap.
